REVOLUTION 150 EC VECTOR 796 m³/hr

Description

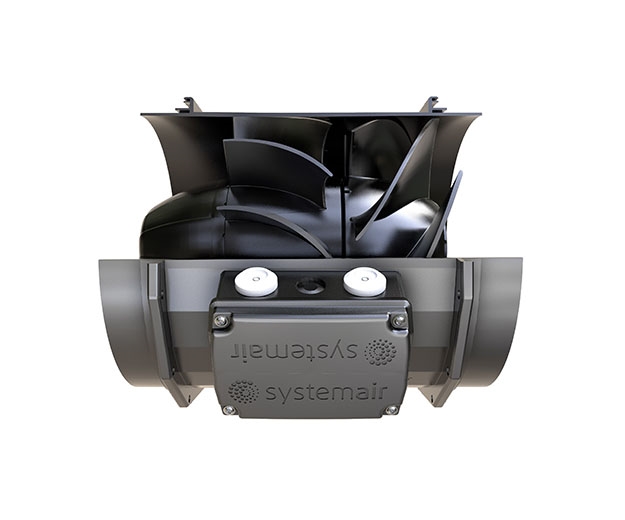

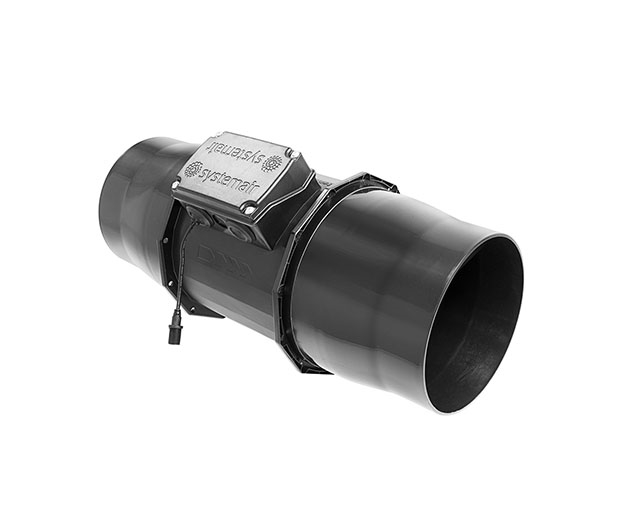

REVOLUTION 150 EC VECTOR 796 m³/hr is the energy-efficient, variable-speed extraction fan from Revolution that delivers precise, responsive airflow control for medium-scale UK grow rooms and large grow tent setups. We have been recommending Revolution EC fans to UK growers since 2017 as the most capable and energy-efficient ventilation solution available at this duct size and airflow rating.

Why EC Technology Makes This Fan Exceptional Value for Serious Growers

The Revolution 150 EC Vector uses an electronically commutated brushless motor that fundamentally outperforms conventional AC fans on efficiency and controllability. At full speed, EC motors already draw less current than equivalent AC designs for the same airflow output. At reduced speeds — where grow room fans spend the majority of their operating hours as environmental controllers modulate airflow against temperature and humidity setpoints — the EC efficiency advantage becomes dramatic. AC fans throttled by phase-cutting speed controllers waste most of the reduced power input as heat in the speed controller itself; EC motors electronically manage their own commutation for genuine part-load efficiency. The 0–10V analogue control interface allows smooth, stepless speed adjustment from a compatible environmental controller without the motor hum and torque ripple that AC speed controllers introduce at low settings. At 796 m³/hr in a 150mm format, this fan moves substantial air volume efficiently and quietly.

Environmental Control Integration, Installation, and Pairing

Connect the 0–10V control signal from your environmental controller — Ecotechnics, Autopilot, or compatible — to enable fully automated fan speed modulation based on real-time temperature, humidity, or CO2 sensor data. The controller continuously adjusts fan speed to maintain your programmed setpoints, eliminating the temperature swings of on/off fan control. Install with anti-vibration mounts and flexible duct couplings for maximum acoustic isolation. At 150mm, this fan is compatible with standard 150mm carbon filter fittings — pair with a Rhino or Prima Klima 150mm carbon filter for effective odour management alongside efficient air extraction. For growers in residential settings where running costs and noise management matter, the Revolution 150 EC Vector is the smart choice. Browse our full Revolution EC fan range and environmental control accessories.
